Product Detail
Feature:
Full digital and clear image,PC based abundant and powerful functions,Complete application software packages,10 inch non-inter

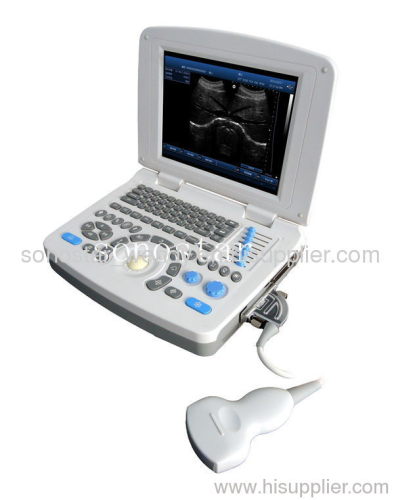

SS-10 Laptop PC Based Ultrasound B Scanner(3D image optiona
Specification:
Specification:
-D-Maximum Scanning Depth: 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop:1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, ZOOM;
Real-time Zoom on B mode
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment,contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Monitor: 10 inch LCD screen
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
-Dimension: 300×230×60mm
-Probe Connector:2
-Weight: Around 2.3kg
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop:1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, ZOOM;
Real-time Zoom on B mode
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment,contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Monitor: 10 inch LCD screen
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
-Dimension: 300×230×60mm
-Probe Connector:2
-Weight: Around 2.3kg
